- DURABLE CONSTRUCTION: L4 G24 NVG Helmet Mount and Dual PVS-14 Bridge Mount is made of lightweight aircraft aluminum, which not only ensures the sturdiness of the bracket, but also greatly reduces the overall weight, allowing you to enjoy a light and convenient wearing experience in outdoor activities.
- VERSATILE: Compatible with PVS-14 systems.
- LOW-PROFILE DESIGN: Presents a reduced snag hazard with its compact geometry in active and stowed positions.
- COMFORTABLE FIT: The stand has an ergonomic design. The low-profile design sits flush against the helmet to avoid pressure points, keeping operators comfortable even during extended periods of use.
- TOOL-FREE ADJUSTMENT: The bracket is easy to install without additional tools. Users can quickly install and remove the bracket for easy portability and operation.
L4 G24 Helmet Mount
Features:
- Designed to provide a solid mounting platform with multiple adjustment points.
- One handed operation.
- Low Profile shape on the helmet.
- Attach NVG dummy like PVS15 / 18 (Op type Mount shroud was not included).
- Fit for OPS Core Shroud / Fast Base Jump Helmet / Standard Mich Mount Base.
Specifications:
- This NVG Mounting System is unique that it provides two modes of operation.
- The G24 has the famous breakaway feature that provides the wearer the protection from neck or head injury.
- The first mode allows the mount to “break away” from the base under a stressed condition such as getting snagged during fast roping or hitting a hard object when entering or exiting a vehicle or building. With this breakaway feature serious neck injuries and equipment damage can be minimized or avoided.
- The second mode allows the Universal NVG Mount to securely lock the mount to the base.
Description:
- Breakaway Feature allows Mount to Break Away under Stress, or to Securely Lock in Place by Means of a Breakaway Lever.
- Lock Release Lever allows NVG height to be easily adjusted up or down, then secured.
- A Mount Release Lever allows the operator to easily set the desirable mode (breakaway or locked), depending upon operational needs.
- An ergonomically placed Flip Release Button allows the Mount to "fip up" to a stowed position when the goggle is attached. This pivot mechanism is simple and robust by design and cannot loosen over time.
- A Tilt Adjustment Knob allows the operator to fine adjust the tilt angle of the NVG.
- A Fore/Aft Release Lever allows for fore/aft travel of the goggle. Releasing the lever allows the operator to set the fore/aft position of the goggle.
- An ergonomically placed NVG Release Button allows for one handed release of the NVG.
- Vertical Height Adjustment: .900” Total Travel.
- Fore/Aft Travel: 1.10” Total Travel.
NVG J arm Helmet Mount
Features:
- Links Two PVS-14 Monoculars
- Dovetail Interface Connects to Helmet
- Modular Three Piece Design
- Wide Range / Interpupillary Adjustment
- Allows for a fast detachment of each arm from the dovetail interface
- Offers a wide range of separation between individual monoculars
Description:

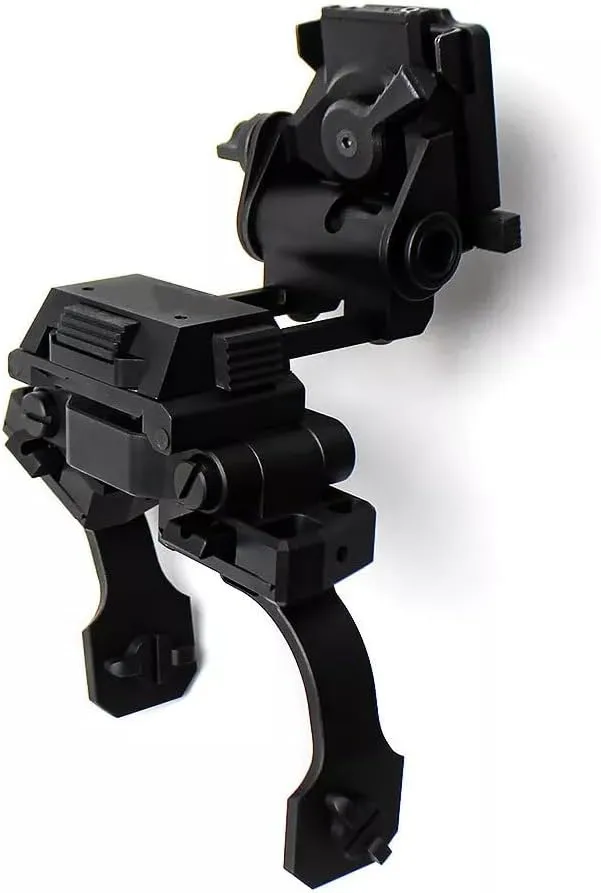

- The Dual PVS-14 Bridge Mount allows you to link two PVS-14 monoculars to form a binocular system that can be used as a handheld device or mounted to a helmet or headgear.
- For connecting the adapter to bases of the PVS-14 monoculars, use attached the 1/4"-20 thumbscrews.

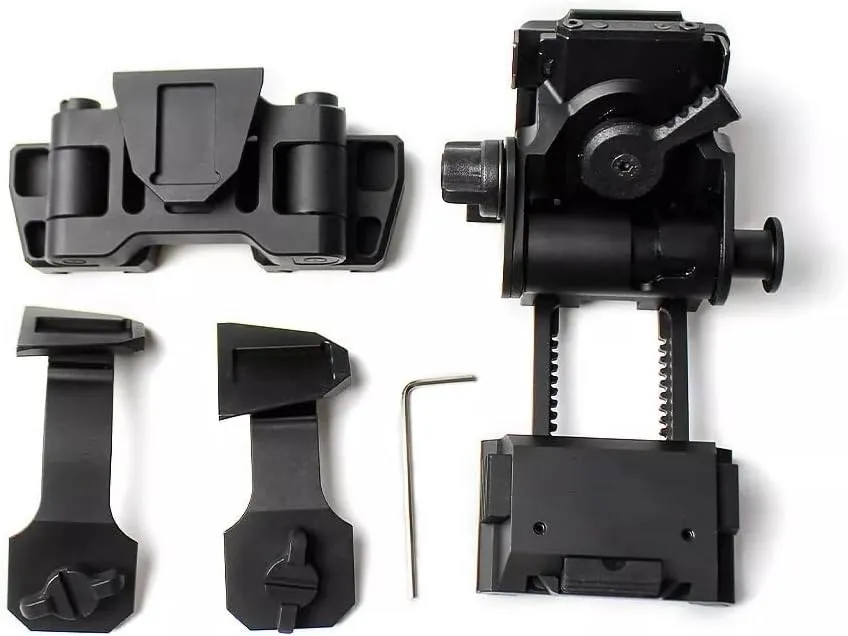

- The mount also features a modular three-piece design which consists of two aluminum arms and an aluminum dovetail base.
- It has two quick-release buttons for detaching each arm from the base, which allows you to quickly detach each PVS-14 separately and share them or use them with other equipment.
- To add versatility to the adapter, the rotating joints have tightening screws that allow you to secure a desired position for each monocular.
Construction Details:
- Modular three-piece design with interlocking connections
- 1/4"-20 thumbscrews for connecting to PVS-14 monoculars
- Aluminum construction with matte black anodizing finish
